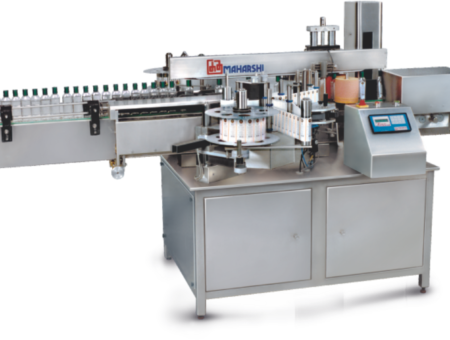

Maharshi Double-Sided Labelling Machine

Maharshi manufactures vsc-vlc high-speed automatic double-sided labelling machine.









Maharshi manufactures vsc-vlc high-speed automatic double-sided labelling machines.

Machine Specifications:

  • Speed: 100/200/300 BPM
  • Label Length: 8 to 300 mm.
  • Label Height: 95/125/225/(std.) above 225mm (optional)
  • Dispenser Motor: Stepper/Servo
  • Stop Tolerance: +/- 0.5 to 0.75mm (servo)
  • Accuracy on dispenser: 0.75 to 1.00mm (stepper)
  • Roll Dia: 350mm std. & 550mm (optional)
  • Product: side belt conveyor with diff. speed Nylon Twin-Feed Worm Assy
  • Feeding & Separation: Flat / Oval Bottle (Change Part as per Container)
  • Product Holding: Specially designed spring loaded/cushion type top belt
  • HMI: Feather touch keypad (std.) / Touch HMI or Ind. PC (optional)


  • Single side or double side simultaneously on any shape & size containers
  • Speed up to 100-200-300 containers/min.
  • Digital Servo Technology
  • Two label dispensers operate independently which allows a different size of label application on either side
  • Unique spring-loaded twin worm system virtually eliminated the use of any tools making it toll-less operation
  • Spring action feed warm / feed screw ensures high safety to containers in case of toppling down does not damage
  • 3 Axis label dispensers allow any degree of label dispensing possible for any shape & bottle
  • Unique notch orientation system for registered/fix position of the label is possible with us
